PROVerXL 4030 V2 Linear Rail Upgrade

FreeCAD-designed HGR15 rail conversion with drawings, CNC workflow, and Blender render

Blender render of the PROVerXL 4030 V2 linear rail upgrade

Project Overview

This project upgrades the SainSmart PROVerXL 4030 V2 with HGR15 linear rails and CNC-machined adapter plates. I modeled the parts and assembly in FreeCAD, created technical drawings for fabrication, planned the machining-oriented plate design, and produced a Blender render to present the finished upgrade package.

Engineering Stack

FreeCADTechnical DrawingsCAD/CAMCNC MillingTolerancesBlender

Machine Test

What I Built

Complete FreeCAD assembly model for the upgraded gantry and rail adapter layout.
Technical drawings for the machined plates and mechanical interfaces.
CNC-oriented plate geometry designed around repeatable fabrication and fit.
Blender product render to communicate the finished upgrade clearly.

STEP Package

The STEP-based model package is available on Etsy for builders who want to machine, inspect, or adapt the upgrade for their own setup.

Open Etsy Listing

Assembly & Drawings

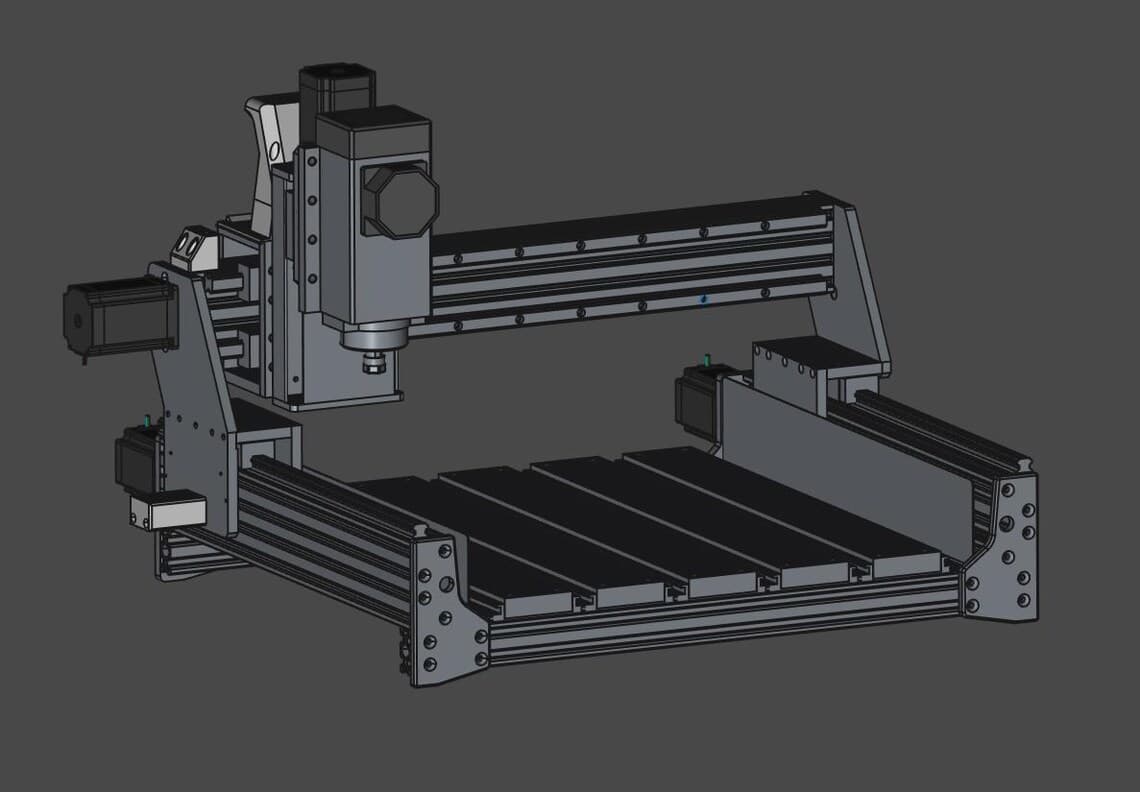

FreeCAD assembly of the HGR15 linear rail upgrade
FreeCAD assembly of the HGR15 linear rail upgrade
